Route53 Resolver を使って VPC Endpoint の名前解決が有効な VPC から Private・Regional・Edge API にアクセスしてみる

本記事で検証した内容は実験的なものですので、実環境へ導入する際は自己責任でお願いします。

はじめに

VPC Endpoint を設定している環境で、API Gateway の Regional API または Edge API にアクセスすると 403 エラーが発生することがあります。

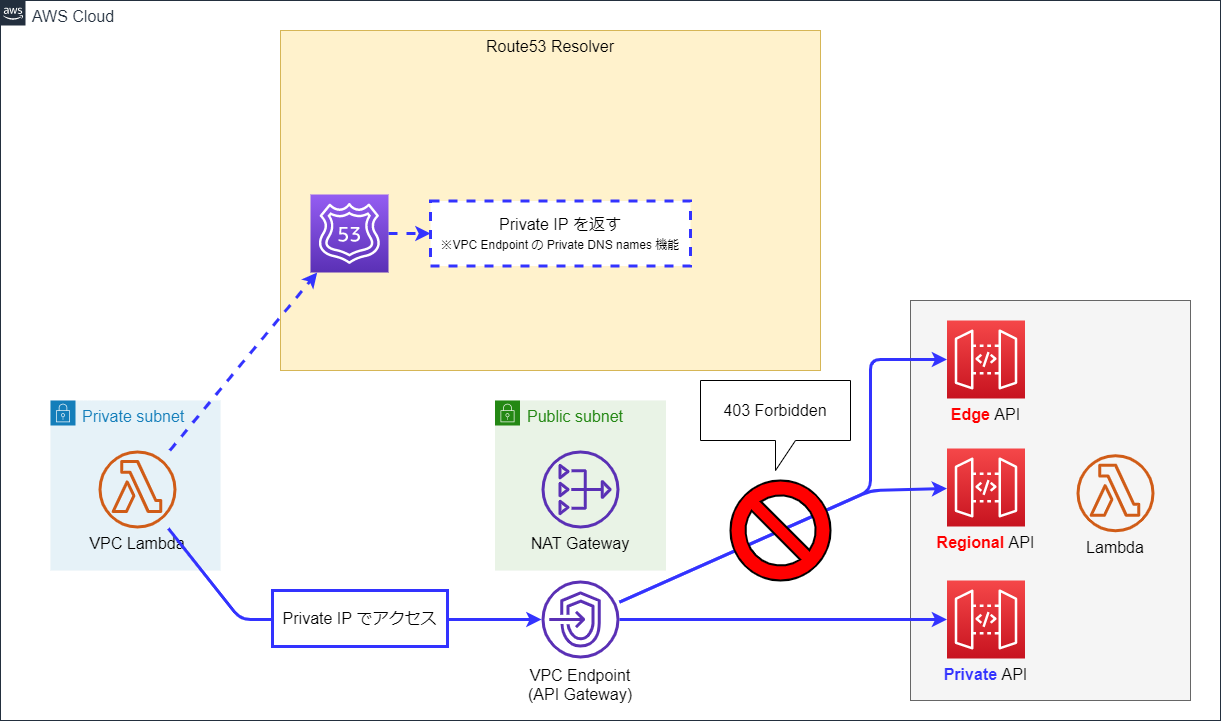

これは VPC Endpoint の Private DNS が以下のように機能して発生します。
※以降の図で、波線矢印は名前解決の流れを表しています

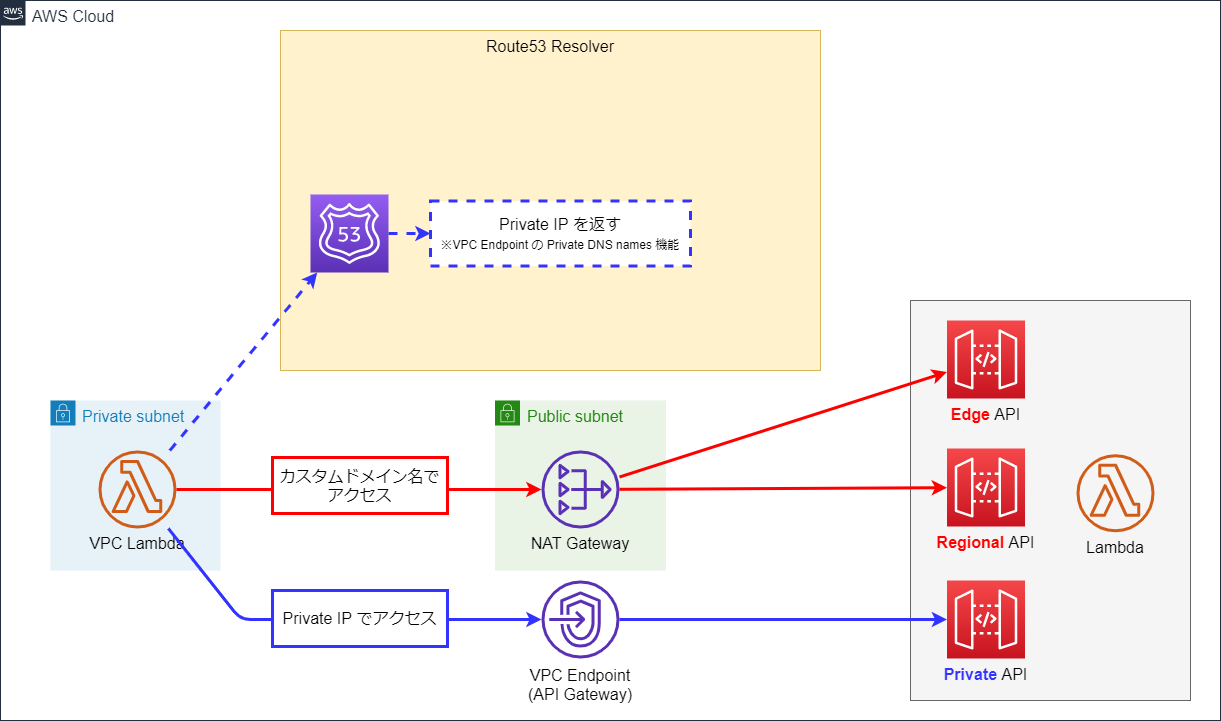

これを解消するには、カスタムドメインで Regional / Edge API にアクセスするか、

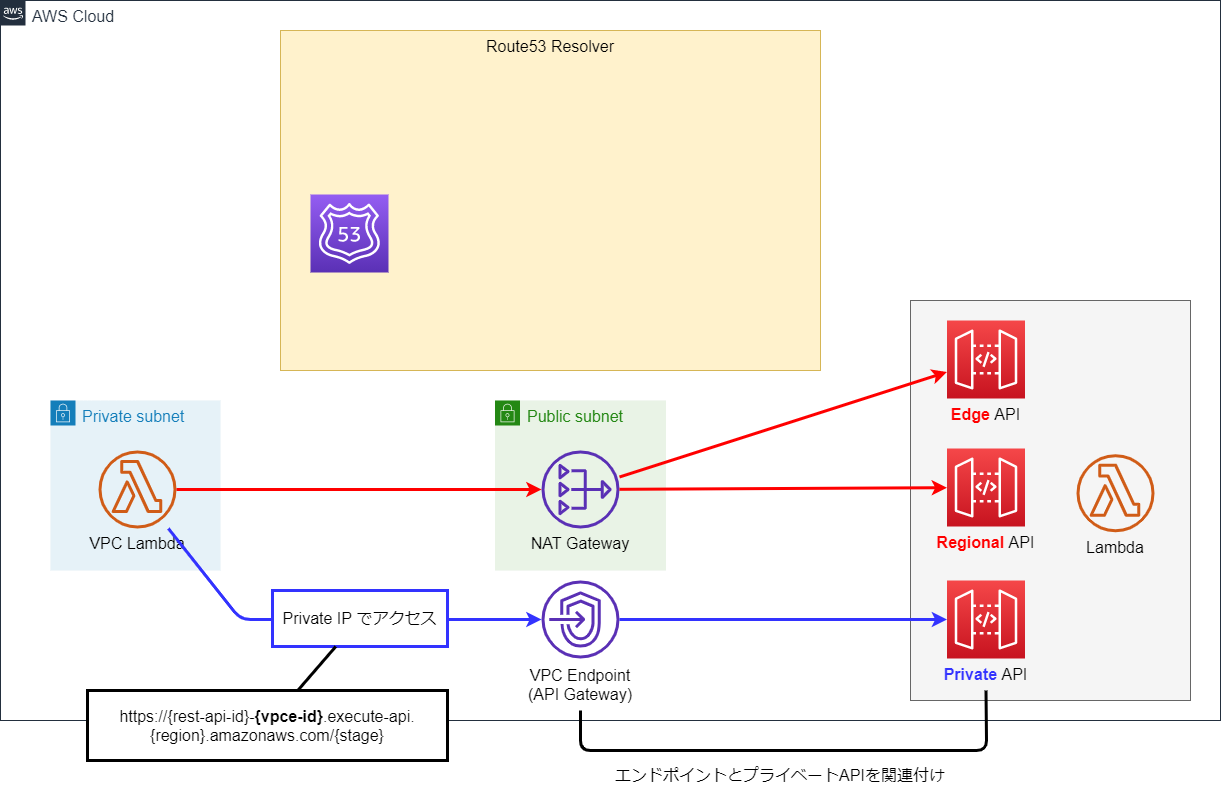

Private DNS を無効にして、Private API と VPC Endpoint を関連付けすることで生成される以下のようなURLを介して Private API にアクセスする必要があります。
https://{rest-api-id}-{vpce-id}.execute-api.{region}.amazonaws.com/{stage}

VPC から API Gateway API に接続するときに HTTP 403 Forbidden エラーが発生するのは何故ですか?
プライベート API を呼び出す方法

しかし、

Regional / Edge API にカスタムドメインを用意するのは難しいが (外部システムなど)
VPC Endpoint ID が含まれないシンプルな URL で Private API にアクセスしたい

という場合を考慮して、Route53 Resolver の Outbound Rule を使ってこれを実現できないか検証してみました。
検証に利用した CloudFormation テンプレートは、本記事の末尾に載せました。

検証してみた

VPC Endpoint と Route53 Resolver Outbound Rule の有無でフェーズ1, 2, 3 に分けました。

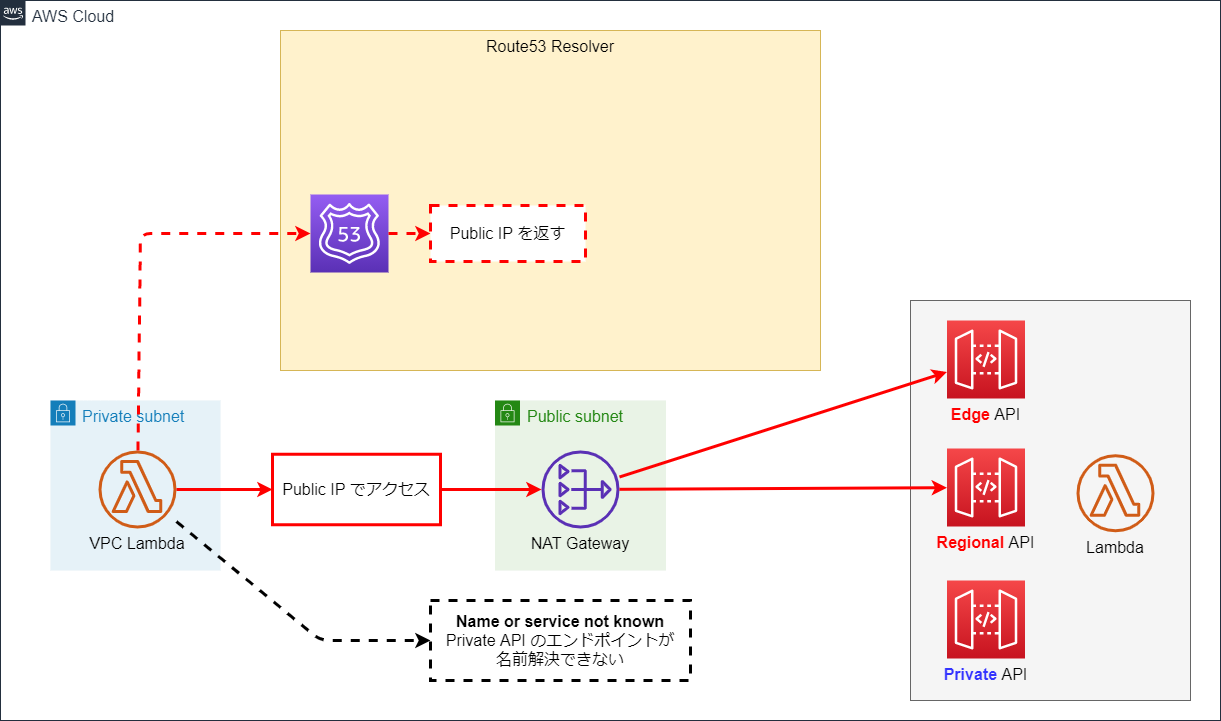

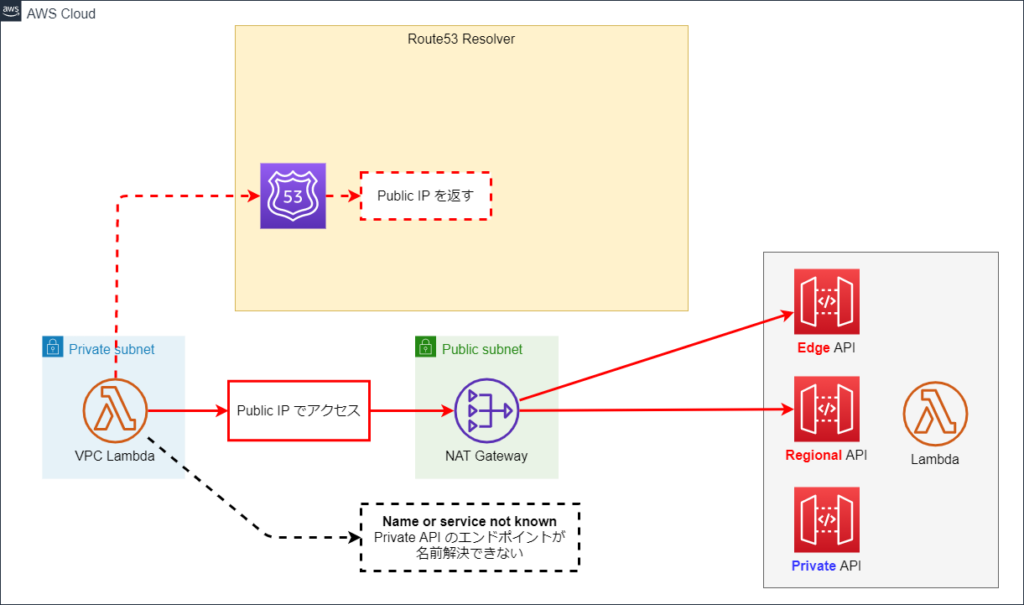

フェーズ1

フェーズ1 は、VPC Endpoint も Outbound Rule も無い状態です。

図中の VPC Lambda は各 API にアクセスし、API が使っているIPアドレスと API のレスポンスを表示します。

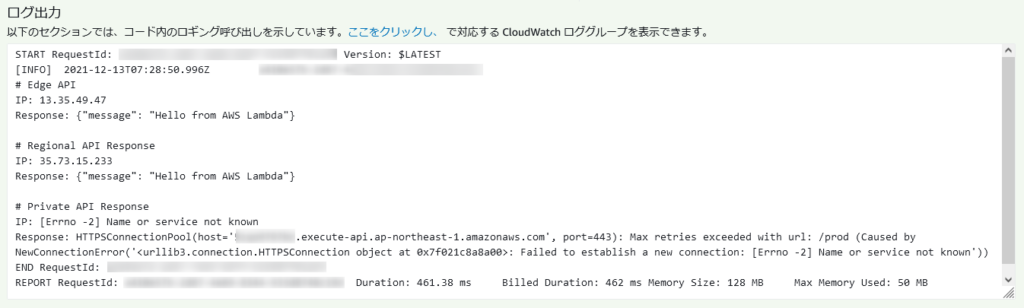

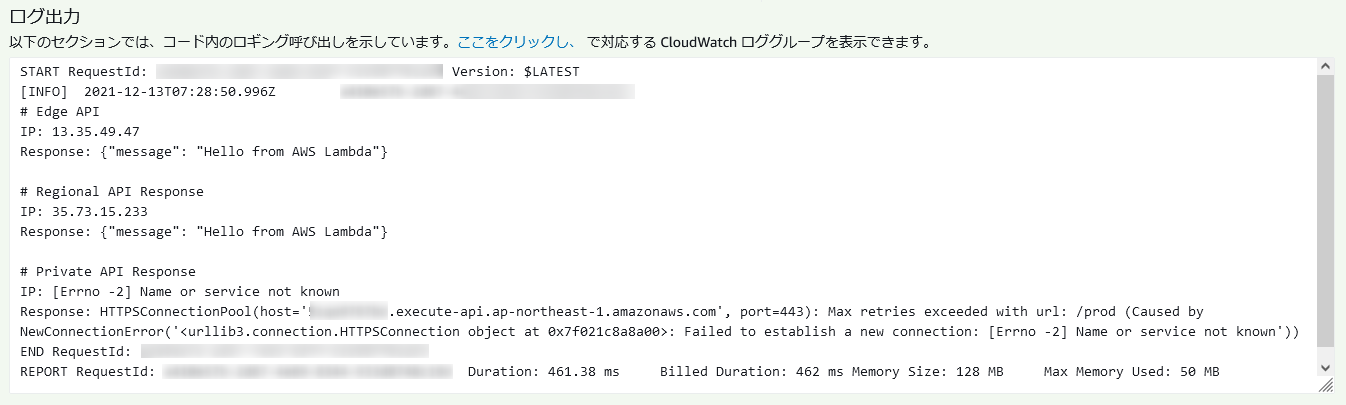

VPC Lambda をテスト実行すると以下のようになりました。

フェーズ1の図の通り、

Regional / Edge API に Public IP でアクセスし、
Private API のエンドポイントの名前解決が出来ていない

ということが分かります。

フェーズ2

フェーズ2には、Private DNS が有効化された VPC Endpoint が配置されています。

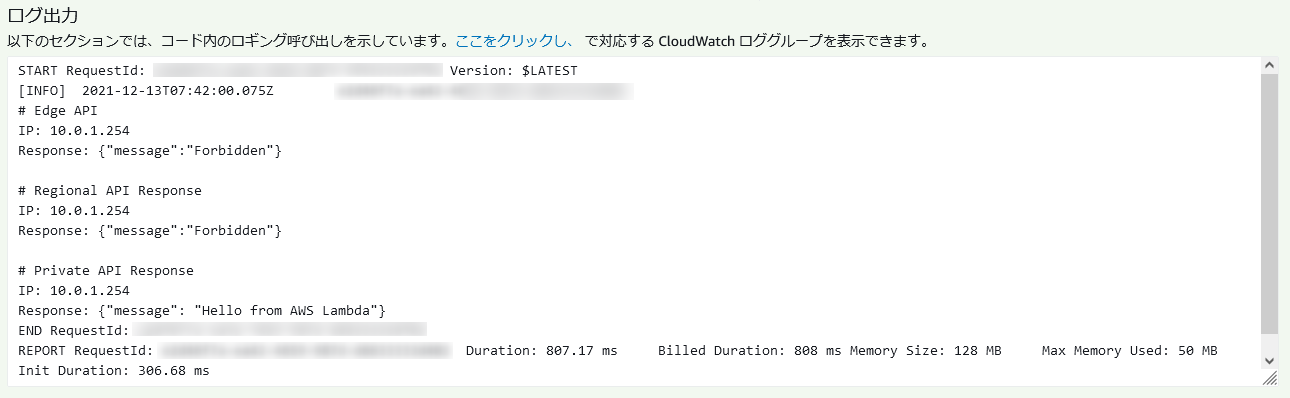

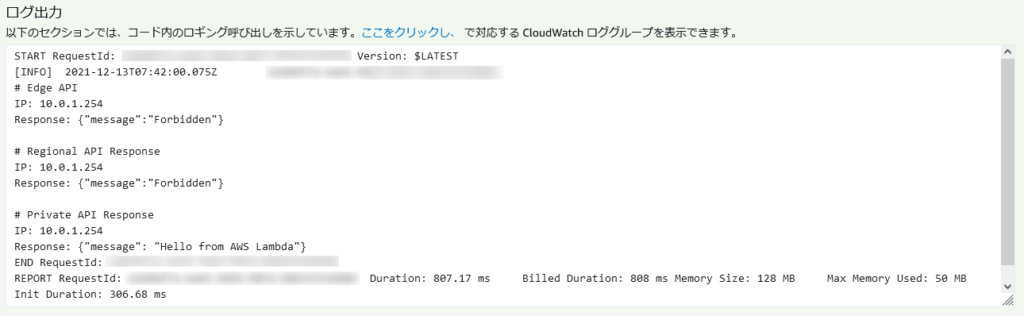

VPC Lambda をテスト実行すると以下のようになりました。

フェーズ2の図の通り、

全ての API に Private IP でアクセスし、
Regional / Edge API へのアクセスは Forbidden となっている

ということが分かります。

フェーズ3

こちらが本記事のキモです。

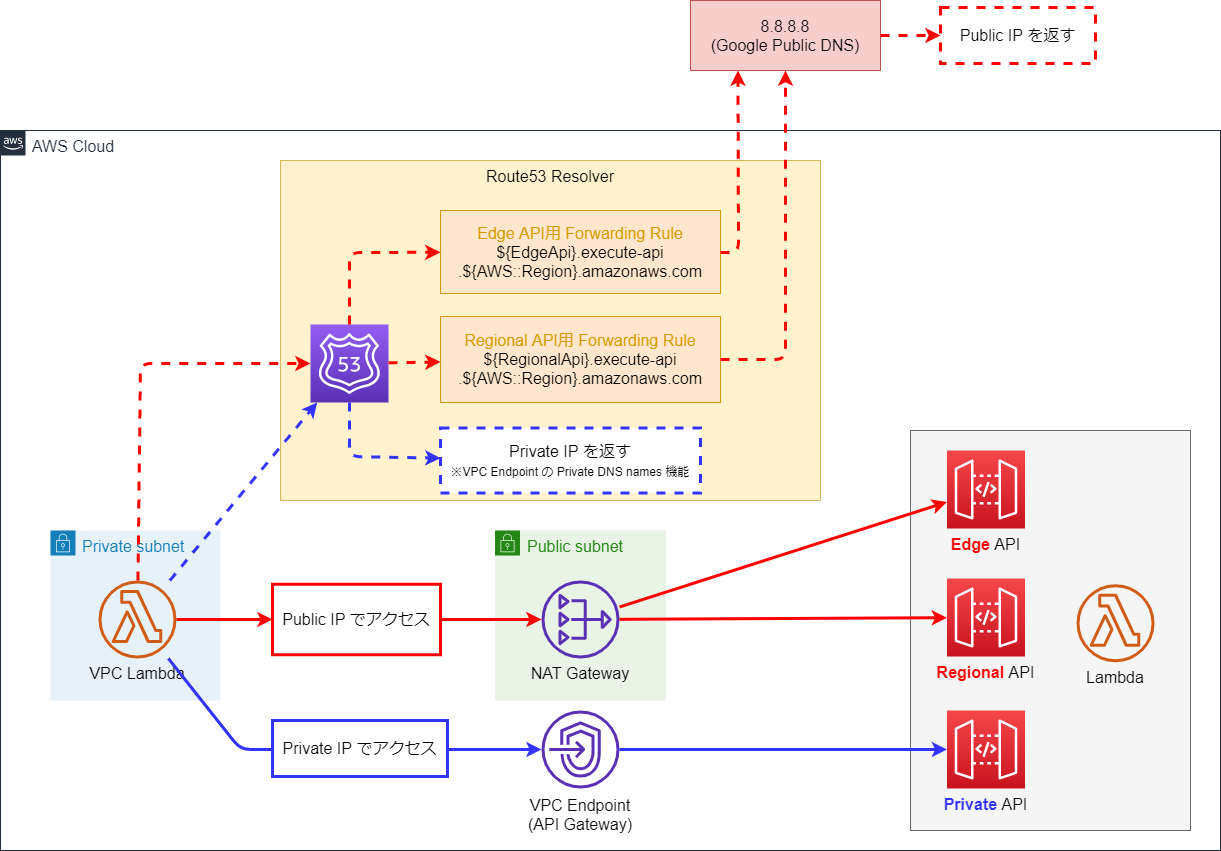

フェーズ3は、フェーズ2に Route53 Resolver Outbound Rule を追加した形になっています。
Outbound Rule により Regional / Edge API のドメイン名の名前解決を 8.8.8.8 (Google Public DNS) に転送します。

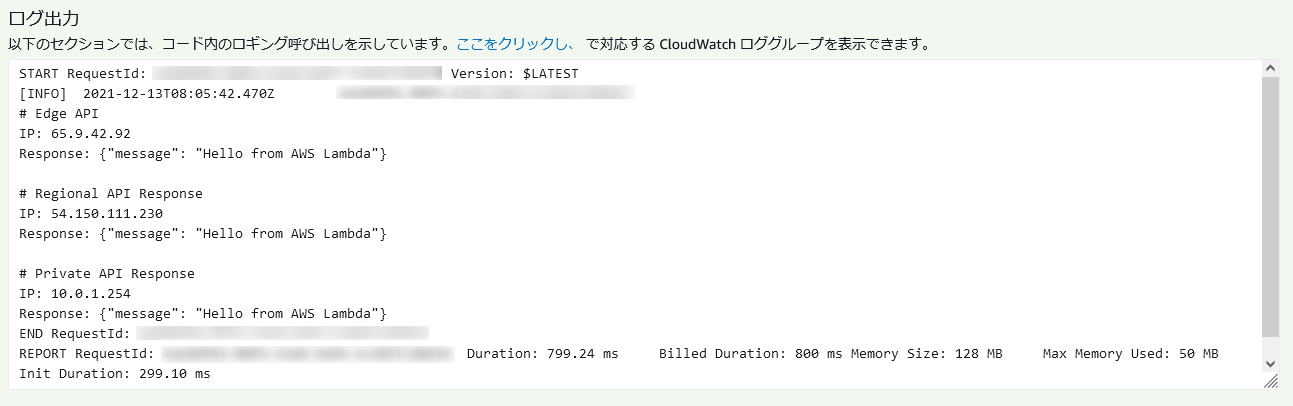

VPC Lambda をテスト実行すると以下のようになりました。

フェーズ3の図の通り、

Regional / Edge API へ Public IP でアクセスし、
Private API へ Private IP でアクセスしている
いずれの API にもアクセス出来ている

という結果になりました。

CloudFormationテンプレート

VPC Lambda が利用しているレイヤーの関係で、本テンプレートそのままだと東京リージョンでしか動作しません。
別リージョンへ展開する場合はこちらを参考に該当部分を適宜修正ください。

AWSTemplateFormatVersion: 2010-09-09
Transform: AWS::Serverless-2016-10-31

Parameters:
  ResourcePrefix:
    Type: String
    Default: "api-r53"

  Phase:
    Type: String
    Default: "1"
    AllowedValues:
      - "1"
      - "2"
      - "3"

Conditions:
  Phase2: !Equals
    - !Ref Phase
    - "2"

  Phase3: !Equals
    - !Ref Phase
    - "3"

  AfterPhase2: !Or
    - !Condition Phase2
    - !Condition Phase3

Resources:
# ------------------------------------------------------------#
# Networking
# ------------------------------------------------------------#
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 10.0.0.0/16
      EnableDnsSupport: true
      EnableDnsHostnames: true
      Tags:
        - Key: Name
          Value: !Sub ${ResourcePrefix}-vpc-{{resolve:ssm:${RandomIdParameter}}}

  PublicSubnet:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: 10.0.0.0/24
      MapPublicIpOnLaunch: false
      VpcId: !Ref VPC
      AvailabilityZone: ap-northeast-1a
      Tags:
        - Key: Name
          Value: !Sub ${ResourcePrefix}-public-subnet-{{resolve:ssm:${RandomIdParameter}}}

  PrivateSubnet:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: 10.0.1.0/24
      MapPublicIpOnLaunch: false
      VpcId: !Ref VPC
      AvailabilityZone: ap-northeast-1a
      Tags:
        - Key: Name
          Value: !Sub ${ResourcePrefix}-private-subnet-{{resolve:ssm:${RandomIdParameter}}}

  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: !Sub ${ResourcePrefix}-igw-{{resolve:ssm:${RandomIdParameter}}}

  InternetGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      InternetGatewayId : !Ref InternetGateway
      VpcId: !Ref VPC

  RouteTableForPublicSubnet:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${ResourcePrefix}-public-route-table-{{resolve:ssm:${RandomIdParameter}}}

  RouteForPublicSubnet:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref RouteTableForPublicSubnet
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  AssocciateRouteTableForPublicSubnet:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref RouteTableForPublicSubnet
      SubnetId: !Ref PublicSubnet

  Eip:
    Type: AWS::EC2::EIP
    Properties:
      Domain: vpc
      Tags:
        - Key: Name
          Value: !Sub ${ResourcePrefix}-eip-{{resolve:ssm:${RandomIdParameter}}}

  NatGateway:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt Eip.AllocationId
      SubnetId: !Ref PublicSubnet
      Tags:
        - Key: Name
          Value: !Sub ${ResourcePrefix}-nat-gateway-{{resolve:ssm:${RandomIdParameter}}}

  RouteTableForPrivateSubnet:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${ResourcePrefix}-private-route-table-{{resolve:ssm:${RandomIdParameter}}}

  RouteForPrivateSubnet:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref RouteTableForPrivateSubnet
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NatGateway

  AssocciateRouteTableForPrivateSubnet:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref RouteTableForPrivateSubnet
      SubnetId: !Ref PrivateSubnet

# ------------------------------------------------------------#
# VPC Endpoint for API Gateway
# ------------------------------------------------------------#
  VpcEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Condition: AfterPhase2
    Properties:
      ServiceName: !Sub "com.amazonaws.${AWS::Region}.execute-api"
      VpcEndpointType: Interface
      PrivateDnsEnabled: true
      VpcId: !Ref VPC
      SubnetIds:
        - !Ref PrivateSubnet
      SecurityGroupIds:
        - !Ref VpcEndpointSecurityGroup

  VpcEndpointSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Condition: AfterPhase2
    Properties:
        GroupName: !Sub ${ResourcePrefix}-vpc-endpoint-sg-{{resolve:ssm:${RandomIdParameter}}}
        GroupDescription: security group for vpc endpoint of api gateway
        VpcId: !Ref VPC
        SecurityGroupIngress:
          - IpProtocol: tcp
            FromPort: 443
            ToPort: 443
            CidrIp: !GetAtt VPC.CidrBlock
        SecurityGroupEgress:
          - IpProtocol: "-1"
            CidrIp: 0.0.0.0/0

# ------------------------------------------------------------#
# Route53 Resolver
# ------------------------------------------------------------#
  ResolverRuleForEdgeApi:
    Type: AWS::Route53Resolver::ResolverRule
    Condition: Phase3
    Properties:
      DomainName: !Sub ${EdgeApi}.execute-api.${AWS::Region}.amazonaws.com
      Name: !Sub ${ResourcePrefix}-edge-api-resolver-rule-{{resolve:ssm:${RandomIdParameter}}}
      ResolverEndpointId: !Ref ResolverEndpoint
      RuleType: FORWARD
      TargetIps:
        - Ip: 8.8.8.8
          Port: 53

  ResolverRuleAssociationForEdgeApi:
    Type: AWS::Route53Resolver::ResolverRuleAssociation
    Condition: Phase3
    Properties:
      Name: !Sub ${ResourcePrefix}-edge-api-resolver-rule-association-{{resolve:ssm:${RandomIdParameter}}}
      ResolverRuleId: !GetAtt ResolverRuleForEdgeApi.ResolverRuleId
      VPCId: !Ref VPC

  ResolverRuleForRegionalApi:
    Type: AWS::Route53Resolver::ResolverRule
    Condition: Phase3
    Properties:
      DomainName: !Sub ${RegionalApi}.execute-api.${AWS::Region}.amazonaws.com
      Name: !Sub ${ResourcePrefix}-regional-api-resolver-rule-{{resolve:ssm:${RandomIdParameter}}}
      ResolverEndpointId: !Ref ResolverEndpoint
      RuleType: FORWARD
      TargetIps:
        - Ip: 8.8.8.8
          Port: 53

  ResolverRuleAssociationForRegionalApi:
    Type: AWS::Route53Resolver::ResolverRuleAssociation
    Condition: Phase3
    Properties:
      Name: !Sub ${ResourcePrefix}-regional-api-resolver-rule-association-{{resolve:ssm:${RandomIdParameter}}}
      ResolverRuleId: !GetAtt ResolverRuleForRegionalApi.ResolverRuleId
      VPCId: !Ref VPC

  ResolverEndpoint:
    Type: AWS::Route53Resolver::ResolverEndpoint
    Condition: Phase3
    Properties:
      Direction: OUTBOUND
      IpAddresses:
        # 2つ以上指定が必要
        - SubnetId: !Ref PrivateSubnet
        - SubnetId: !Ref PrivateSubnet
      Name: !Sub ${ResourcePrefix}-resolver-endpoint-{{resolve:ssm:${RandomIdParameter}}}
      SecurityGroupIds:
        - !Ref ResolverEndpointSecurityGroup

  ResolverEndpointSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Condition: Phase3
    Properties:
        GroupName: !Sub ${ResourcePrefix}-resolver-endpoint-sg-{{resolve:ssm:${RandomIdParameter}}}
        GroupDescription: security group for route53 resolver endpoint
        VpcId: !Ref VPC
        SecurityGroupIngress:
          - IpProtocol: tcp
            FromPort: 53
            ToPort: 53
            CidrIp: !GetAtt VPC.CidrBlock
          - IpProtocol: udp
            FromPort: 53
            ToPort: 53
            CidrIp: !GetAtt VPC.CidrBlock
        SecurityGroupEgress:
          - IpProtocol: "-1"
            CidrIp: 0.0.0.0/0

# ------------------------------------------------------------#
# VPC Lambda
# ------------------------------------------------------------#
  VpcLambda:
    Type: AWS::Serverless::Function
    DependsOn: VpcLambdaLog
    Properties:
      FunctionName: !Sub ${ResourcePrefix}-vpc-function-{{resolve:ssm:${RandomIdParameter}}}
      InlineCode: |
        import logging
        import os
        import socket

        import requests

        logger = logging.getLogger()
        logger.setLevel(os.environ['LOG_LEVEL'])

        def lambda_handler(event, context):
            logger.info('\n'.join([
                '',
                '# Edge API',
                get_output(url=os.environ['EDGE_API_URL']),
                '',
                '# Regional API Response',
                get_output(url=os.environ['REGIONAL_API_URL']),
                '',
                '# Private API Response',
                get_output(url=os.environ['PRIVATE_API_URL']),
            ]))

        def get_output(url:str) -&gt; str:
            domain_name = url.split('/')[2]
            output = '\n'.join([
                f'IP: {get_ip(domain_name)}',
                f'Response: {requests_get(url)}',
            ])
            return output

        def get_ip(domain_name:str) -&gt; str:
            try:
                return socket.gethostbyname(domain_name)
            except Exception as e:
                return str(e)

        def requests_get(url:str) -&gt; str:
            try:
                return requests.get(url).content.decode('ascii')
            except requests.exceptions.RequestException as e:
                return str(e)
      Handler: index.lambda_handler
      Environment:
        Variables:
          LOG_LEVEL: INFO
          EDGE_API_URL: !Sub https://${EdgeApi}.execute-api.${AWS::Region}.amazonaws.com/prod
          REGIONAL_API_URL: !Sub https://${RegionalApi}.execute-api.${AWS::Region}.amazonaws.com/prod
          PRIVATE_API_URL: !Sub https://${PrivateApi}.execute-api.${AWS::Region}.amazonaws.com/prod
      Runtime: python3.8
      Timeout: 10
      MemorySize: 128
      VpcConfig:
        SecurityGroupIds:
          - !Ref VpcLambdaSecurityGroup
        SubnetIds:
          - !Ref PrivateSubnet
      Layers:
        # "Python Toolkit" on https://github.com/mthenw/awesome-layers
        - arn:aws:lambda:ap-northeast-1:770693421928:layer:Klayers-python38-requests:24
      Policies:
        - Version: 2012-10-17
          Statement:
            - Effect: Allow
              Action:
                - logs:CreateLogGroup
              Resource: !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:*
            - Effect: Allow
              Action:
                - logs:CreateLogStream
                - logs:PutLogEvents
              Resource: !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/lambda/${ResourcePrefix}-vpc-function-{{resolve:ssm:${RandomIdParameter}}}:*

  VpcLambdaSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
        GroupName: !Sub ${ResourcePrefix}-vpc-function-sg-{{resolve:ssm:${RandomIdParameter}}}
        GroupDescription: security group for vpc lambda function
        VpcId: !Ref VPC
        SecurityGroupEgress:
          - IpProtocol: "-1"
            CidrIp: 0.0.0.0/0

  VpcLambdaLog:
    Type: AWS::Logs::LogGroup
    Properties:
      LogGroupName: !Sub /aws/lambda/${ResourcePrefix}-vpc-function-{{resolve:ssm:${RandomIdParameter}}}
      RetentionInDays: 7

# ------------------------------------------------------------#
# API Gateway + Lambda
# ------------------------------------------------------------#
  EdgeApi:
    Type: AWS::Serverless::Api
    Properties:
      Name: !Sub ${ResourcePrefix}-edge-api-{{resolve:ssm:${RandomIdParameter}}}
      StageName: prod
      EndpointConfiguration:
        Type: EDGE

  RegionalApi:
    Type: AWS::Serverless::Api
    Properties:
      Name: !Sub ${ResourcePrefix}-regional-api-{{resolve:ssm:${RandomIdParameter}}}
      StageName: prod
      EndpointConfiguration:
        Type: REGIONAL

  PrivateApi:
    Type: AWS::Serverless::Api
    Properties:
      Name: !Sub ${ResourcePrefix}-private-api-{{resolve:ssm:${RandomIdParameter}}}
      StageName: prod
      EndpointConfiguration:
        Type: PRIVATE
      Auth:
        ResourcePolicy:
          IntrinsicVpcWhitelist:
            - !Ref VPC

  ApiLambda:
    Type: AWS::Serverless::Function
    DependsOn: ApiLambdaLog
    Properties:
      FunctionName: !Sub ${ResourcePrefix}-api-function-{{resolve:ssm:${RandomIdParameter}}}
      InlineCode: |
        def lambda_handler(event, context):
            return {
                'isBase64Encoded': False,
                'statusCode': 200,
                'headers': {},
                'body': '{"message": "Hello from AWS Lambda"}'
            }
      Handler: index.lambda_handler
      Runtime: python3.8
      Timeout: 10
      MemorySize: 128
      Events:
        EdgeApiEvent:
          Type: Api
          Properties:
            Path: /
            Method: get
            RestApiId: !Ref EdgeApi
        RegionalApiEvent:
          Type: Api
          Properties:
            Path: /
            Method: get
            RestApiId: !Ref RegionalApi
        PrivateApiEvent:
          Type: Api
          Properties:
            Path: /
            Method: get
            RestApiId: !Ref PrivateApi
      Policies:
        - Version: 2012-10-17
          Statement:
            - Effect: Allow
              Action:
                - logs:CreateLogGroup
              Resource: !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:*
            - Effect: Allow
              Action:
                - logs:CreateLogStream
                - logs:PutLogEvents
              Resource: !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/lambda/${ResourcePrefix}-api-function-{{resolve:ssm:${RandomIdParameter}}}:*

  ApiLambdaLog:
    Type: AWS::Logs::LogGroup
    Properties:
      LogGroupName: !Sub /aws/lambda/${ResourcePrefix}-api-function-{{resolve:ssm:${RandomIdParameter}}}
      RetentionInDays: 7

# ------------------------------------------------------------#
# Supplemental Resources
# ------------------------------------------------------------#
  RandomIdParameter:
    Type: AWS::SSM::Parameter
    Properties:
      Name: !Join
        - '/'
        - - !Sub /${ResourcePrefix}
          - !Select [ '0', !Split [ '-', !Select [ '2', !Split [ '/', !Ref AWS::StackId ] ] ] ]
          - random-id
      Type: String
      Value: !Select [ '0', !Split [ '-', !Select [ '2', !Split [ '/', !Ref AWS::StackId ] ] ] ]

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

AWSTemplateFormatVersion: 2010-09-09

Transform: AWS::Serverless-2016-10-31

Parameters:

ResourcePrefix:

Type: String

Default: "api-r53"

Phase:

Type: String

Default: "1"

AllowedValues:

- "1"

- "2"

- "3"

Conditions:

Phase2: !Equals

- !Ref Phase

- "2"

Phase3: !Equals

- !Ref Phase

- "3"

AfterPhase2: !Or

- !Condition Phase2

- !Condition Phase3

Resources:

# ------------------------------------------------------------#

# Networking

# ------------------------------------------------------------#

VPC:

Type: AWS::EC2::VPC

Properties:

CidrBlock: 10.0.0.0/16

EnableDnsSupport: true

EnableDnsHostnames: true

Tags:

- Key: Name

Value: !Sub ${ResourcePrefix}-vpc-{{resolve:ssm:${RandomIdParameter}}}

PublicSubnet:

Type: AWS::EC2::Subnet

Properties:

CidrBlock: 10.0.0.0/24

MapPublicIpOnLaunch: false

VpcId: !Ref VPC

AvailabilityZone: ap-northeast-1a

Tags:

- Key: Name

Value: !Sub ${ResourcePrefix}-public-subnet-{{resolve:ssm:${RandomIdParameter}}}

PrivateSubnet:

Type: AWS::EC2::Subnet

Properties:

CidrBlock: 10.0.1.0/24

MapPublicIpOnLaunch: false

VpcId: !Ref VPC

AvailabilityZone: ap-northeast-1a

Tags:

- Key: Name

Value: !Sub ${ResourcePrefix}-private-subnet-{{resolve:ssm:${RandomIdParameter}}}

InternetGateway:

Type: AWS::EC2::InternetGateway

Properties:

Tags:

- Key: Name

Value: !Sub ${ResourcePrefix}-igw-{{resolve:ssm:${RandomIdParameter}}}

InternetGatewayAttachment:

Type: AWS::EC2::VPCGatewayAttachment

Properties:

InternetGatewayId : !Ref InternetGateway

VpcId: !Ref VPC

RouteTableForPublicSubnet:

Type: AWS::EC2::RouteTable

Properties:

VpcId: !Ref VPC

Tags:

- Key: Name

Value: !Sub ${ResourcePrefix}-public-route-table-{{resolve:ssm:${RandomIdParameter}}}

RouteForPublicSubnet:

Type: AWS::EC2::Route

Properties:

RouteTableId: !Ref RouteTableForPublicSubnet

DestinationCidrBlock: 0.0.0.0/0

GatewayId: !Ref InternetGateway

AssocciateRouteTableForPublicSubnet:

Type: AWS::EC2::SubnetRouteTableAssociation

Properties:

RouteTableId: !Ref RouteTableForPublicSubnet

SubnetId: !Ref PublicSubnet

Eip:

Type: AWS::EC2::EIP

Properties:

Domain: vpc

Tags:

- Key: Name

Value: !Sub ${ResourcePrefix}-eip-{{resolve:ssm:${RandomIdParameter}}}

NatGateway:

Type: AWS::EC2::NatGateway

Properties:

AllocationId: !GetAtt Eip.AllocationId

SubnetId: !Ref PublicSubnet

Tags:

- Key: Name

Value: !Sub ${ResourcePrefix}-nat-gateway-{{resolve:ssm:${RandomIdParameter}}}

RouteTableForPrivateSubnet:

Type: AWS::EC2::RouteTable

Properties:

VpcId: !Ref VPC

Tags:

- Key: Name

Value: !Sub ${ResourcePrefix}-private-route-table-{{resolve:ssm:${RandomIdParameter}}}

RouteForPrivateSubnet:

Type: AWS::EC2::Route

Properties:

RouteTableId: !Ref RouteTableForPrivateSubnet

DestinationCidrBlock: 0.0.0.0/0

NatGatewayId: !Ref NatGateway

AssocciateRouteTableForPrivateSubnet:

Type: AWS::EC2::SubnetRouteTableAssociation

Properties:

RouteTableId: !Ref RouteTableForPrivateSubnet

SubnetId: !Ref PrivateSubnet

# ------------------------------------------------------------#

# VPC Endpoint for API Gateway

# ------------------------------------------------------------#

VpcEndpoint:

Type: AWS::EC2::VPCEndpoint

Condition: AfterPhase2

Properties:

ServiceName: !Sub "com.amazonaws.${AWS::Region}.execute-api"

VpcEndpointType: Interface

PrivateDnsEnabled: true

VpcId: !Ref VPC

SubnetIds:

- !Ref PrivateSubnet

SecurityGroupIds:

- !Ref VpcEndpointSecurityGroup

VpcEndpointSecurityGroup:

Type: AWS::EC2::SecurityGroup

Condition: AfterPhase2

Properties:

GroupName: !Sub ${ResourcePrefix}-vpc-endpoint-sg-{{resolve:ssm:${RandomIdParameter}}}

GroupDescription: security group for vpc endpoint of api gateway

VpcId: !Ref VPC

SecurityGroupIngress:

- IpProtocol: tcp

FromPort: 443

ToPort: 443

CidrIp: !GetAtt VPC.CidrBlock

SecurityGroupEgress:

- IpProtocol: "-1"

CidrIp: 0.0.0.0/0

# ------------------------------------------------------------#

# Route53 Resolver

# ------------------------------------------------------------#

ResolverRuleForEdgeApi:

Type: AWS::Route53Resolver::ResolverRule

Condition: Phase3

Properties:

DomainName: !Sub ${EdgeApi}.execute-api.${AWS::Region}.amazonaws.com

Name: !Sub ${ResourcePrefix}-edge-api-resolver-rule-{{resolve:ssm:${RandomIdParameter}}}

ResolverEndpointId: !Ref ResolverEndpoint

RuleType: FORWARD

TargetIps:

- Ip: 8.8.8.8

Port: 53

ResolverRuleAssociationForEdgeApi:

Type: AWS::Route53Resolver::ResolverRuleAssociation

Condition: Phase3

Properties:

Name: !Sub ${ResourcePrefix}-edge-api-resolver-rule-association-{{resolve:ssm:${RandomIdParameter}}}

ResolverRuleId: !GetAtt ResolverRuleForEdgeApi.ResolverRuleId

VPCId: !Ref VPC

ResolverRuleForRegionalApi:

Type: AWS::Route53Resolver::ResolverRule

Condition: Phase3

Properties:

DomainName: !Sub ${RegionalApi}.execute-api.${AWS::Region}.amazonaws.com

Name: !Sub ${ResourcePrefix}-regional-api-resolver-rule-{{resolve:ssm:${RandomIdParameter}}}

ResolverEndpointId: !Ref ResolverEndpoint

RuleType: FORWARD

TargetIps:

- Ip: 8.8.8.8

Port: 53

ResolverRuleAssociationForRegionalApi:

Type: AWS::Route53Resolver::ResolverRuleAssociation

Condition: Phase3

Properties:

Name: !Sub ${ResourcePrefix}-regional-api-resolver-rule-association-{{resolve:ssm:${RandomIdParameter}}}

ResolverRuleId: !GetAtt ResolverRuleForRegionalApi.ResolverRuleId

VPCId: !Ref VPC

ResolverEndpoint:

Type: AWS::Route53Resolver::ResolverEndpoint

Condition: Phase3

Properties:

Direction: OUTBOUND

IpAddresses:

# 2つ以上指定が必要

- SubnetId: !Ref PrivateSubnet

Name: !Sub ${ResourcePrefix}-resolver-endpoint-{{resolve:ssm:${RandomIdParameter}}}

SecurityGroupIds:

- !Ref ResolverEndpointSecurityGroup

ResolverEndpointSecurityGroup:

Type: AWS::EC2::SecurityGroup

Condition: Phase3

Properties:

GroupName: !Sub ${ResourcePrefix}-resolver-endpoint-sg-{{resolve:ssm:${RandomIdParameter}}}

GroupDescription: security group for route53 resolver endpoint

VpcId: !Ref VPC

SecurityGroupIngress:

- IpProtocol: tcp

FromPort: 53

ToPort: 53

CidrIp: !GetAtt VPC.CidrBlock

- IpProtocol: udp

FromPort: 53

ToPort: 53

CidrIp: !GetAtt VPC.CidrBlock

SecurityGroupEgress:

- IpProtocol: "-1"

CidrIp: 0.0.0.0/0

# ------------------------------------------------------------#

# VPC Lambda

# ------------------------------------------------------------#

VpcLambda:

Type: AWS::Serverless::Function

DependsOn: VpcLambdaLog

Properties:

FunctionName: !Sub ${ResourcePrefix}-vpc-function-{{resolve:ssm:${RandomIdParameter}}}

InlineCode: |

import logging

import os

import socket

import requests

logger = logging.getLogger()

logger.setLevel(os.environ['LOG_LEVEL'])

def lambda_handler(event, context):

logger.info('\n'.join([

'',

'# Edge API',

get_output(url=os.environ['EDGE_API_URL']),

'',

'# Regional API Response',

get_output(url=os.environ['REGIONAL_API_URL']),

'',

'# Private API Response',

get_output(url=os.environ['PRIVATE_API_URL']),

]))

def get_output(url:str) -> str:

domain_name = url.split('/')[2]

output = '\n'.join([

f'IP: {get_ip(domain_name)}',

f'Response: {requests_get(url)}',

])

return output

def get_ip(domain_name:str) -> str:

try:

return socket.gethostbyname(domain_name)

except Exception as e:

return str(e)

def requests_get(url:str) -> str:

try:

return requests.get(url).content.decode('ascii')

except requests.exceptions.RequestException as e:

return str(e)

Handler: index.lambda_handler

Environment:

Variables:

LOG_LEVEL: INFO

EDGE_API_URL: !Sub https://${EdgeApi}.execute-api.${AWS::Region}.amazonaws.com/prod

REGIONAL_API_URL: !Sub https://${RegionalApi}.execute-api.${AWS::Region}.amazonaws.com/prod

PRIVATE_API_URL: !Sub https://${PrivateApi}.execute-api.${AWS::Region}.amazonaws.com/prod

Runtime: python3.8

Timeout: 10

MemorySize: 128

VpcConfig:

SecurityGroupIds:

- !Ref VpcLambdaSecurityGroup

SubnetIds:

- !Ref PrivateSubnet

Layers:

# "Python Toolkit" on https://github.com/mthenw/awesome-layers

- arn:aws:lambda:ap-northeast-1:770693421928:layer:Klayers-python38-requests:24

Policies:

- Version: 2012-10-17

Statement:

- Effect: Allow

Action:

- logs:CreateLogGroup

Resource: !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:*

- Effect: Allow

Action:

- logs:CreateLogStream

- logs:PutLogEvents

Resource: !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/lambda/${ResourcePrefix}-vpc-function-{{resolve:ssm:${RandomIdParameter}}}:*

VpcLambdaSecurityGroup:

Type: AWS::EC2::SecurityGroup

Properties:

GroupName: !Sub ${ResourcePrefix}-vpc-function-sg-{{resolve:ssm:${RandomIdParameter}}}

GroupDescription: security group for vpc lambda function

VpcId: !Ref VPC

SecurityGroupEgress:

- IpProtocol: "-1"

CidrIp: 0.0.0.0/0

VpcLambdaLog:

Type: AWS::Logs::LogGroup

Properties:

LogGroupName: !Sub /aws/lambda/${ResourcePrefix}-vpc-function-{{resolve:ssm:${RandomIdParameter}}}

RetentionInDays: 7

# ------------------------------------------------------------#

# API Gateway + Lambda

# ------------------------------------------------------------#

EdgeApi:

Type: AWS::Serverless::Api

Properties:

Name: !Sub ${ResourcePrefix}-edge-api-{{resolve:ssm:${RandomIdParameter}}}

StageName: prod

EndpointConfiguration:

Type: EDGE

RegionalApi:

Type: AWS::Serverless::Api

Properties:

Name: !Sub ${ResourcePrefix}-regional-api-{{resolve:ssm:${RandomIdParameter}}}

StageName: prod

EndpointConfiguration:

Type: REGIONAL

PrivateApi:

Type: AWS::Serverless::Api

Properties:

Name: !Sub ${ResourcePrefix}-private-api-{{resolve:ssm:${RandomIdParameter}}}

StageName: prod

EndpointConfiguration:

Type: PRIVATE

Auth:

ResourcePolicy:

IntrinsicVpcWhitelist:

- !Ref VPC

ApiLambda:

Type: AWS::Serverless::Function

DependsOn: ApiLambdaLog

Properties:

FunctionName: !Sub ${ResourcePrefix}-api-function-{{resolve:ssm:${RandomIdParameter}}}

InlineCode: |

def lambda_handler(event, context):

return {

'isBase64Encoded': False,

'statusCode': 200,

'headers': {},

'body': '{"message": "Hello from AWS Lambda"}'

}

Handler: index.lambda_handler

Runtime: python3.8

Timeout: 10

MemorySize: 128

Events:

EdgeApiEvent:

Type: Api

Properties:

Path: /

Method: get

RestApiId: !Ref EdgeApi

RegionalApiEvent:

Type: Api

Properties:

Path: /

Method: get

RestApiId: !Ref RegionalApi

PrivateApiEvent:

Type: Api

Properties:

Path: /

Method: get

RestApiId: !Ref PrivateApi

Policies:

- Version: 2012-10-17

Statement:

- Effect: Allow

Action:

- logs:CreateLogGroup

Resource: !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:*

- Effect: Allow

Action:

- logs:CreateLogStream

- logs:PutLogEvents

Resource: !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/lambda/${ResourcePrefix}-api-function-{{resolve:ssm:${RandomIdParameter}}}:*

ApiLambdaLog:

Type: AWS::Logs::LogGroup

Properties:

LogGroupName: !Sub /aws/lambda/${ResourcePrefix}-api-function-{{resolve:ssm:${RandomIdParameter}}}

RetentionInDays: 7

# ------------------------------------------------------------#

# Supplemental Resources

# ------------------------------------------------------------#

RandomIdParameter:

Type: AWS::SSM::Parameter

Properties:

Name: !Join

- '/'

- - !Sub /${ResourcePrefix}

- !Select [ '0', !Split [ '-', !Select [ '2', !Split [ '/', !Ref AWS::StackId ] ] ] ]

- random-id

Type: String

Value: !Select [ '0', !Split [ '-', !Select [ '2', !Split [ '/', !Ref AWS::StackId ] ] ] ]

AWS・クラウドのMSP スカイアーチネットワークス株式会社

AWS・クラウド導入における構築から監視・運用保守までをマネージドサービスで提供する、スカイアーチネットワークスの公式サイト。AWS・クラウドを始め、豊富なサーバー管理の経験と安心のセキュリティ対策、専門エンジニアの確かな知識で、お客様のビジネスの成長をサポートします。AWS・クラウド導入における構築から監視・運用保守までをマネージドサービスで提供する、スカイアーチネットワークスの公式サイト。AWS・クラウドを始め、豊富なサーバー管理の経験と安心のセキュリティ対策、専門エンジニアの確かな知識で、お客様のビジネスの成長をサポートします。

投稿者プロフィール

sato: 2015年8月入社。弊社はインフラ屋ですが、アプリも作ってみたいです。

Route53 Resolver を使って VPC Endpoint の名前解決が有効な VPC から Private・Regional・Edge API にアクセスしてみる

はじめに

検証してみた

フェーズ1

フェーズ2

フェーズ3

CloudFormationテンプレート

投稿者プロフィール

最新の投稿

ABOUTこの記事をかいた人

NEW POSTこのライターの最新記事

CloudFront + Amplify 構成では Host ヘッダーを転送…

SageMaker で発生する Error getting the deta…

AWS CDK の L2 Construct でリソースの依存関係を明示する

IAM Access Analyzer で「このリソースを分析できませんでし…

サービス

インフォメーション

企業情報

会社Facebook

はじめに

検証してみた

フェーズ1

フェーズ2

フェーズ3

CloudFormationテンプレート

投稿者プロフィール

最新の投稿

RECOMMENDこちらの記事も人気です。

結局Savings Plansってどう買えばいいの？

VPCオリジンを使用してプライベートサブネットに配置した内部向けALBか…

AWS ヘッドライン - 2019.07.18 -

AWS ヘッドライン - 2019.04.01 -

AWS ヘッドライン - 2020.01.29 -

Just-in-Time Registration with AWS I…

LambdaでX-Rayトレースが出てこない？ ～パッシブ計測にお気を付…

AWS ヘッドライン - 2019.10.17 -

ABOUTこの記事をかいた人

NEW POSTこのライターの最新記事

CloudFront + Amplify 構成では Host ヘッダーを転送…

SageMaker で発生する Error getting the deta…

AWS CDK の L2 Construct でリソースの依存関係を明示する

IAM Access Analyzer で「このリソースを分析できませんでし…

タグクラウド

サービス

インフォメーション

企業情報

会社Facebook

タグ

LambdaでX-Rayトレースが出てこない？～パッシブ計測にお気を付…
